POLOS

POLOS HOTPLATE 350 Advanced

POLOS HOTPLATE 350 Advanced

Product description

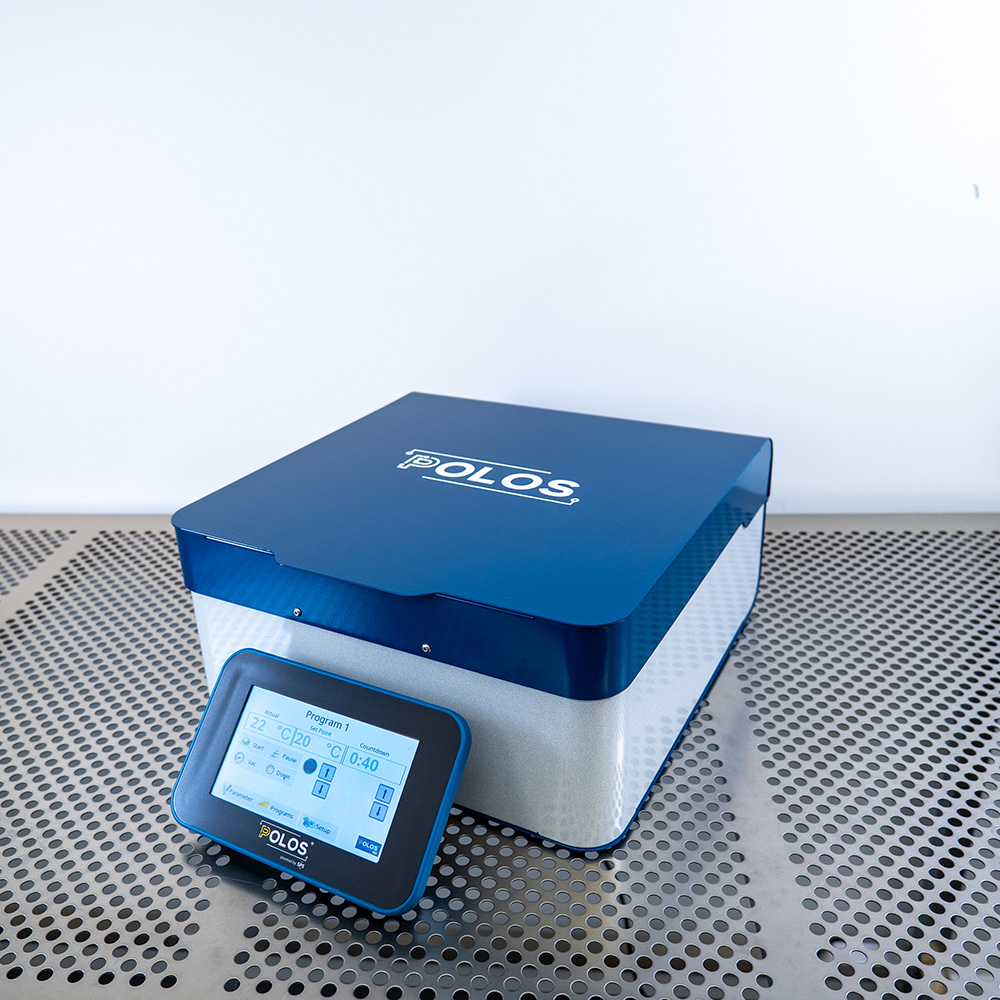

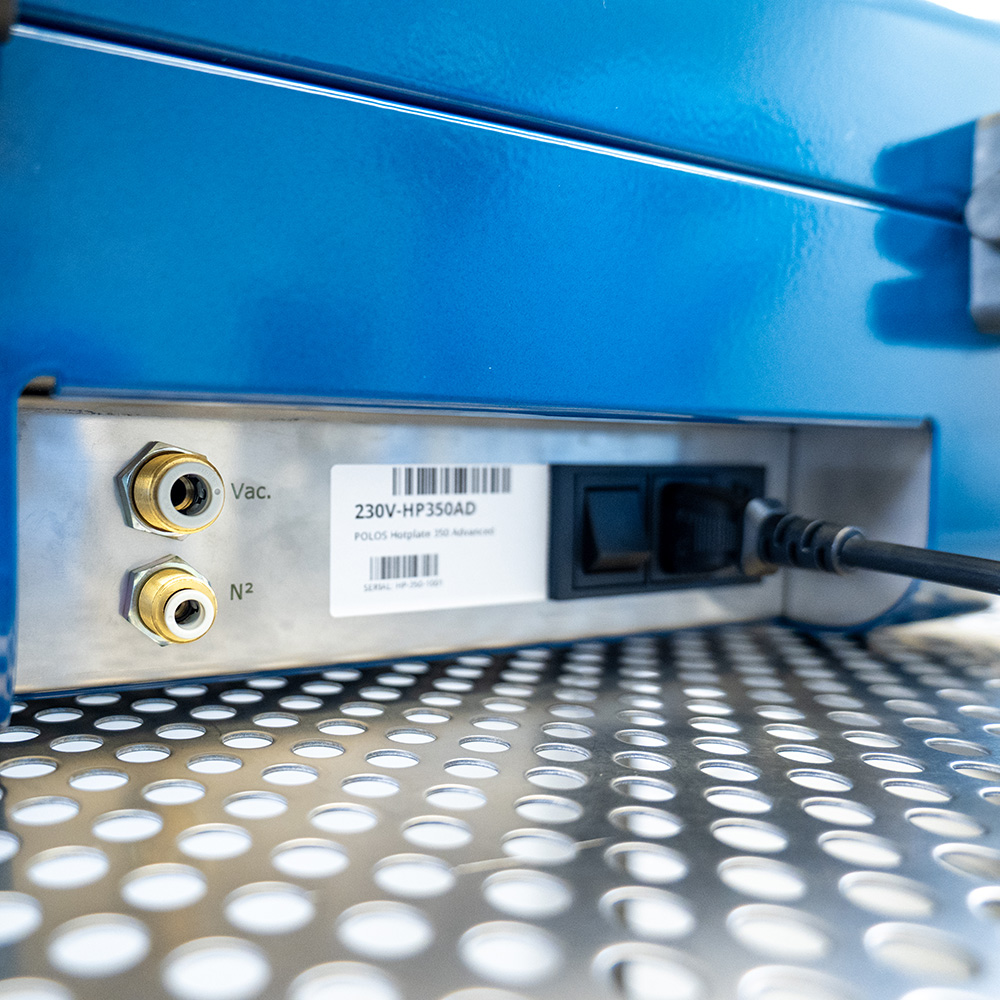

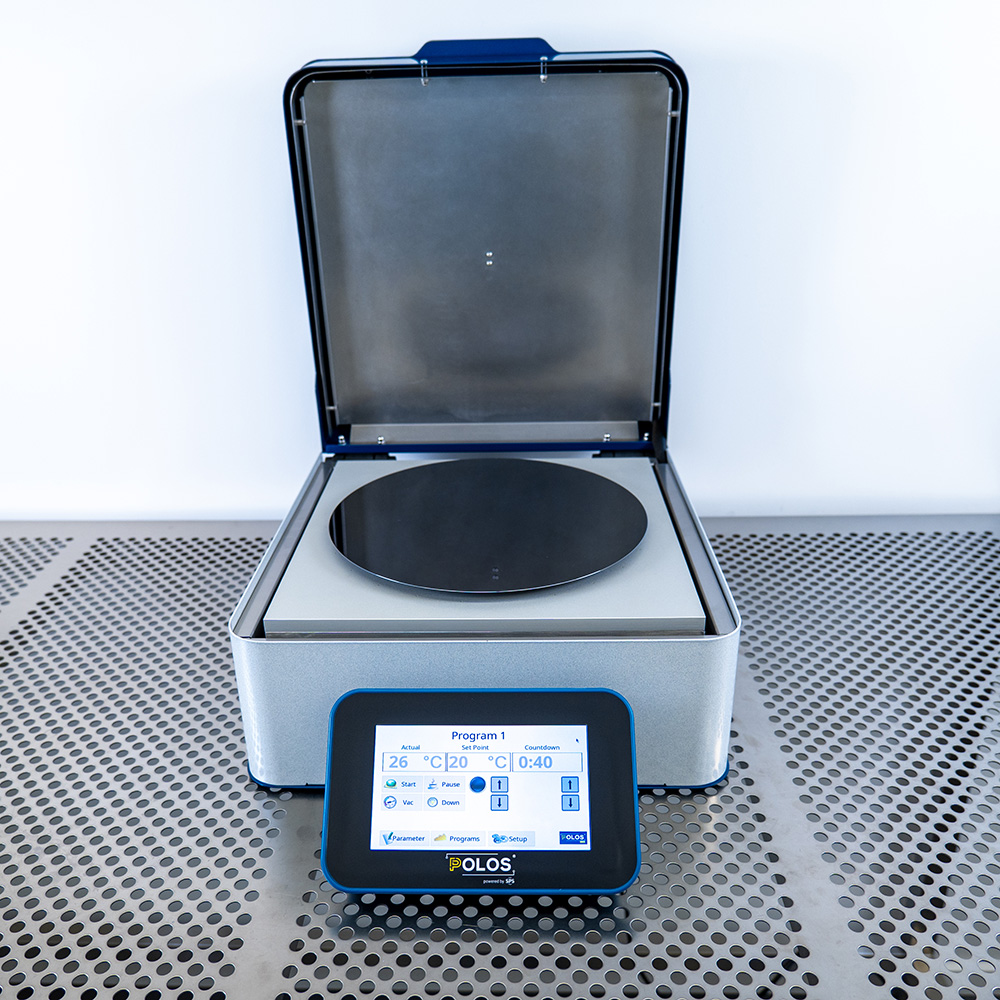

Our table-top hotplate is a versatile and affordable tool for R&D and pilot lines. It is designed with a soft-close lid and is suitable for soft bake as well as hard bake processes, and curing of photoresist, epoxy or any other work requiring precise temperature control. The POLOS® Hotplate 350 is available as an advanced version, which means it is standard equipped with complimentary features such as an N2 connector, lifting pins, vacuum bake, and proximity pins.

Easily convertable into an indeck model

Using our specially designed indeck display bracket, you can easily convert the POLOS® hotplate into an indeck solution.



POLOS

POLOS HOTPLATE 350 Advanced

Suitable for soft bake and hard bake processes
Designed with a soft-close lid
Easily convertible into an indeck model
Programmable storage of 20 programs

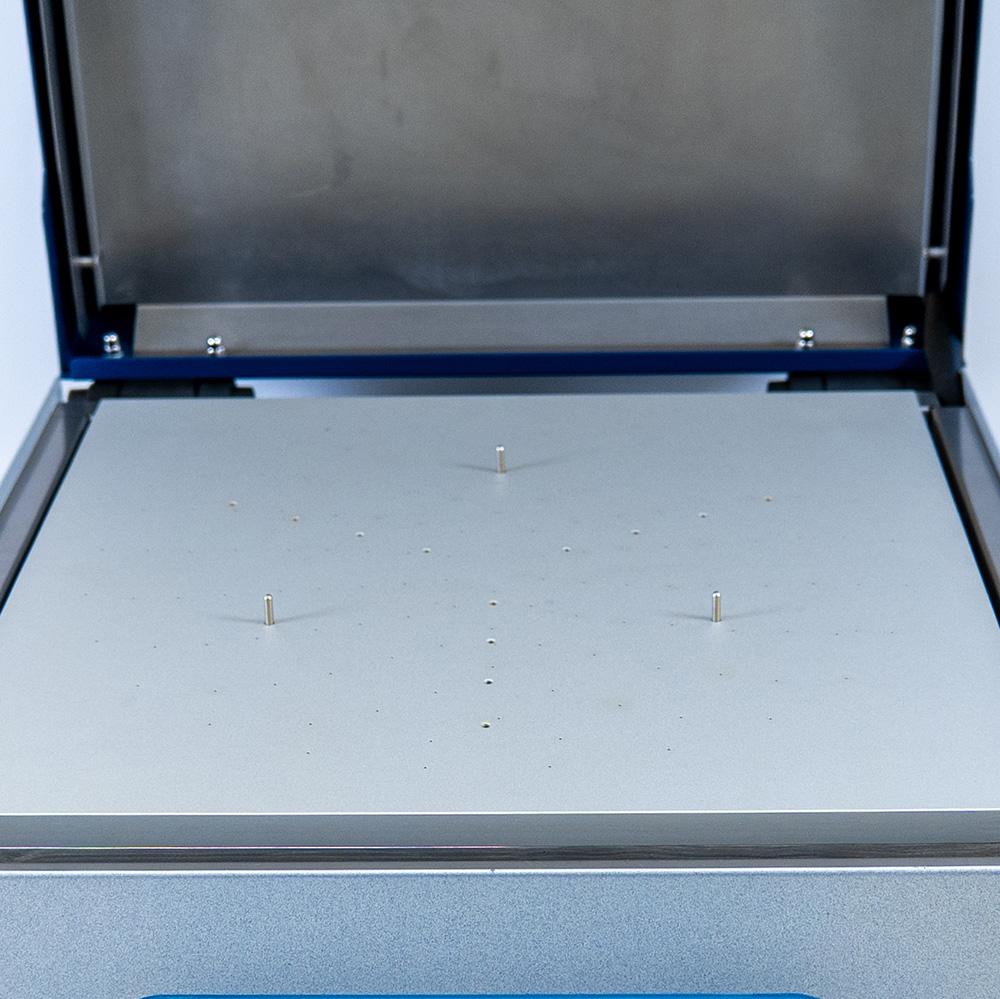

Including: lifting pins, vacuum bake and proximity pins

Specifications

Brand
POLOS
Product Number
POLOS-HP350AD
Material
Aluminum (anodized) (Housing: Powder coated steel)
Max. substrate size
Up to 300 mm
VAC
230 VAC
Temperature range
50 - 230°C
Status
Request quote
