Our Tabletop Ultrasonic Spray Coating Systems are used for precision coating in R&D, small volume production and the medical field. The POLOS® UC410 is widely used for thin film coatings on solar cell, fuel cell, glass coating, stent coating, balloon catheter coating, and more.

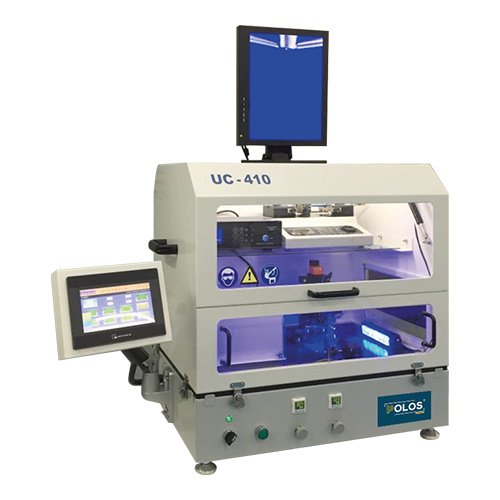

The POLOS® UC410 is a precision spray coating system for implantable stents, especially for arterial stents by using patented ultrasonic spray coating technology. lt can penetrate complex stent geometries, ensure full coverage of all surfaces without webbing, save spray material, etc.
Ultrasonic spray coating systems have been widely used for deposition of anti-restenosis polymers onto the surfaces of implantable stents. Compared to conventional air nozzles, ultrasonic spray nozzles are able to make more uniform coatings fully covered on complex stent geometries.
Highlights
- Stent coating system
- Patented ultrasonic spray nozzles
- Patented full digital ultrasonic generator, Control step size: 0.01 W
- Uniformity: > 95%
- Stent diameter: < 10 mm
- Stent length: < 40 mm (Extensible function: for peripheral stent < 280 mm)
- Transfer Efficiency: > 95%
- Dual linear motor system
- Flow rate: 0.005 ml/min - 20 ml/min
- Precision syringe pump
- Exhaust system
- Precision air pressure control
Options
- Additional Ultrasonic Spray Nozzles
- HD CCD monitor
- Ultrasonic dispersion liquid delivery
