Chemical Compatibility

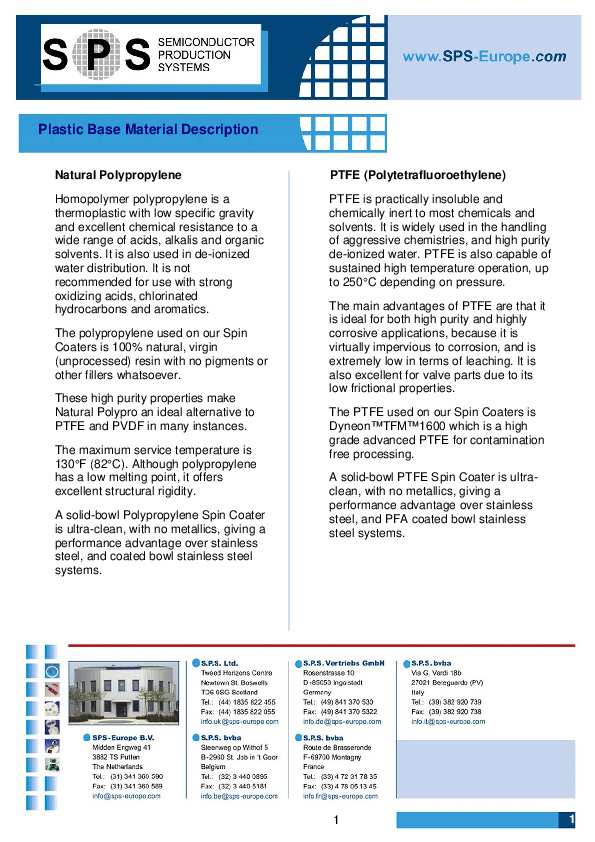

For our spin coaters and spin coater chucks we use NPP-H with α-crystalline properties. This NPP offers users considerably improved rigidity, in addition to increased toughness. In fact, the level of rigidity measured at 100°C is twice as high as that of β-nucleated PP. At low temperatures, in particular, it displays higher impact resistance than standard NPP-H, thus combining greater functionality with improved safety:

Benefits:
  Finer and more stable alpha crystalline structure
  Superior notched impact strength and enhanced rigidity
  Longer service life
  Improved chemical resistance and superior stress crack resistance

Where the application requires PTFE, we use TFM material, superior for use with chemicals above standard PTFE, with a much higher material surface density than standard PTFE, thus none to significant lower “Memory Capability” for absorbing contamination from Chemicals.

The perfluorated side group is identical to that of PFA, but is present in distinctly fewer numbers. The molecular weight is only approx. 1/5 that of PTFE, while PFA has only 1/100 of the molecular weight of PTFE. It therefore fills in the "properties gap" between PTFE and PFA without having to be processed in an injection molding procedure, as is the case with PFA.

Please check below Material Compatibility list for the recommended Spin Coater base material:

Material Compatibility
data based on information provided by Cole-Palmer
A-Excellent, B-Good, C-Fair, D-Severe
Chemical NPP Compatibility PTFE Compatibility
Acetaldehyde A-Excellent A-Excellent
Acetamide A-Excellent A-Excellent
Acetate Solvent B-Good A-Excellent
Acetic Acid B-Good A-Excellent
Acetic Acid 20% A-Excellent A-Excellent
Acetic Acid 80% A-Excellent A-Excellent
Acetic Acid, Glacial A-Excellent A-Excellent
Acetic Anhydride B-Good A-Excellent
Acetone A-Excellent A-Excellent
Acetyl Bromide no data A-Excellent
Acetyl Chloride (dry) D-Severe Effect A-Excellent
Acetylene A-Excellent A-Excellent
Acrylonitrile A-Excellent A-Excellent
Adipic Acid B-Good A-Excellent
Alcohols:Amyl B-Good A-Excellent
Alcohols:Benzyl A-Excellent A-Excellent
Alcohols:Butyl A-Excellent A-Excellent
Alcohols:Diacetone B-Good A-Excellent
Alcohols:Ethyl A-Excellent A-Excellent
Alcohols:Hexyl no data A-Excellent
Alcohols:Isobutyl A-Excellent A-Excellent
Alcohols:Isopropyl A-Excellent A-Excellent
Alcohols:Methyl A-Excellent A-Excellent
Alcohols:Propyl A-Excellent A-Excellent
Aluminum Chloride A-Excellent A-Excellent
Aluminum Chloride 20% A-Excellent A-Excellent
Aluminum Fluoride A-Excellent A-Excellent
Aluminum Hydroxide A-Excellent A-Excellent
Aluminum Nitrate A-Excellent A-Excellent
Aluminum Potassium Sulfate 10% A-Excellent A-Excellent
Aluminum Potassium Sulfate 100% A-Excellent A-Excellent
Aluminum Sulfate A-Excellent A-Excellent
Alums A-Excellent A-Excellent
Amines B-Good A-Excellent
Ammonia 10% A-Excellent A-Excellent
Ammonia Nitrate A-Excellent A-Excellent
Ammonia, anhydrous A-Excellent A-Excellent
Ammonia, liquid A-Excellent A-Excellent
Ammonium Acetate A-Excellent A-Excellent
Ammonium Bifluoride A-Excellent A-Excellent
Ammonium Carbonate A-Excellent A-Excellent
Ammonium Chloride A-Excellent A-Excellent
Ammonium Hydroxide A-Excellent A-Excellent
Ammonium Nitrate A-Excellent A-Excellent
Ammonium Oxalate A-Excellent no data
Ammonium Persulfate A-Excellent A-Excellent
Ammonium Phosphate, Dibasic A-Excellent A-Excellent
Ammonium Phosphate, Monobasic A-Excellent A-Excellent
Ammonium Phosphate, Tribasic A-Excellent A-Excellent
Ammonium Sulfate A-Excellent A-Excellent
Ammonium Sulfite A-Excellent A-Excellent
Amyl Acetate B-Good A-Excellent
Amyl Alcohol B-Good A-Excellent
Amyl Chloride D-Severe Effect A-Excellent
Aniline A-Excellent A-Excellent
Aniline Hydrochloride D-Severe Effect A-Excellent
Antifreeze D-Severe Effect no data
Antimony Trichloride A-Excellent A-Excellent
Aqua Regia (80% HCl, 20% HNO3) B-Good A-Excellent
Arochlor 1248 D-Severe Effect A-Excellent
Aromatic Hydrocarbons D-Severe Effect no data
Arsenic Acid A-Excellent A-Excellent
Asphalt B-Good A-Excellent
Barium Carbonate A-Excellent A-Excellent
Barium Chloride A-Excellent A-Excellent
Barium Cyanide D-Severe Effect A-Excellent
Barium Hydroxide B-Good A-Excellent
Barium Nitrate A-Excellent A-Excellent
Barium Sulfate B-Good A-Excellent
Barium Sulfide B-Good A-Excellent
Beer A-Excellent A-Excellent
Beet Sugar Liquids A-Excellent A-Excellent
Benzaldehyde D-Severe Effect A-Excellent
Benzene D-Severe Effect A-Excellent
Benzene Sulfonic Acid D-Severe Effect A-Excellent
Benzoic Acid B-Good A-Excellent
Benzol B-Good A-Excellent
Benzyl Chloride C-Fair no data
Benzonitrile no data A-Excellent
Bleaching Liquors A-Excellent A-Excellent
Borax (Sodium Borate) B-Good A-Excellent
Boric Acid A-Excellent A-Excellent
Bromine D-Severe Effect A-Excellent
Butadiene C-Fair A-Excellent
Butane A-Excellent A-Excellent
Butanol (Butyl Alcohol) no data A-Excellent
Butter no data A-Excellent
Buttermilk A-Excellent A-Excellent
Butyl Amine B-Good A-Excellent
Butyl Ether D-Severe Effect A-Excellent
Butyl Phthalate B-Good A-Excellent
Butylacetate B-Good A-Excellent
Butylene no data A-Excellent
Butyric Acid B-Good A-Excellent
Calcium Bisulfide A-Excellent A-Excellent
Calcium Bisulfite A-Excellent A-Excellent
Calcium Carbonate A-Excellent A-Excellent
Calcium Chlorate no data A-Excellent
Calcium Chloride A-Excellent A-Excellent
Calcium Hydroxide A-Excellent A-Excellent
Calcium Hypochlorite A-Excellent A-Excellent
Calcium Nitrate A-Excellent A-Excellent
Calcium Oxide A-Excellent A-Excellent
Calcium Sulfate A-Excellent A-Excellent
Calgon A-Excellent no data
Cane Juice C-Fair A-Excellent
Carbolic Acid (Phenol) B-Good A-Excellent
Carbon Bisulfide D-Severe Effect no data
Carbon Dioxide (dry) A-Excellent A-Excellent
Carbon Dioxide (wet) A-Excellent A-Excellent
Carbon Disulfide D-Severe Effect A-Excellent
Carbon Monoxide A-Excellent A-Excellent
Carbon Tetrachloride D-Severe Effect A-Excellent
Carbon Tetrachloride (dry) D-Severe Effect A-Excellent
Carbon Tetrachloride (wet) D-Severe Effect A-Excellent
Carbonated Water B-Good no data
Carbonic Acid A-Excellent A-Excellent
Catsup A-Excellent no data
Chloric Acid   A-Excellent
Chlorine (dry) D-Severe Effect A-Excellent
Chlorine Water D-Severe Effect A-Excellent
Chlorine, Anhydrous Liquid D-Severe Effect A-Excellent
Chloroacetic Acid C-Fair A-Excellent
Chlorobenzene (Mono) C-Fair B-Good
Chlorobromomethane A-Excellent A-Excellent
Chloroform C-Fair A-Excellent
Chlorosulfonic Acid D-Severe Effect A-Excellent
Chocolate Syrup A-Excellent A-Excellent
Chromic Acid 10% D-Severe Effect A-Excellent
Chromic Acid 30% D-Severe Effect A-Excellent
Chromic Acid 5% D-Severe Effect A-Excellent
Chromic Acid 50% D-Severe Effect A-Excellent
Cider A-Excellent no data
Citric Acid A-Excellent A-Excellent
Citric Oils A-Excellent no data
Clorox? (Bleach) D-Severe Effect A-Excellent
Coffee A-Excellent no data
Copper Chloride A-Excellent A-Excellent
Copper Cyanide A-Excellent A-Excellent
Copper Nitrate A-Excellent A-Excellent
Copper Sulfate >5% A-Excellent A-Excellent
Copper Sulfate 5% A-Excellent A-Excellent
Cream A-Excellent A-Excellent
Cresols D-Severe Effect no data
Cresylic Acid A-Excellent A-Excellent
Cupric Acid A-Excellent A-Excellent
Cyanic Acid no data A-Excellent
Cyclohexane D-Severe Effect A-Excellent
Cyclohexanone D-Severe Effect A-Excellent
Detergents A-Excellent A-Excellent
Diacetone Alcohol A-Excellent A-Excellent
Dichlorobenzene C-Fair A-Excellent
Dichloroethane D-Severe Effect A-Excellent
Diesel Fuel A-Excellent A-Excellent
Diethyl Ether A-Excellent A-Excellent
Diethylamine A-Excellent no data
Diethylene Glycol A-Excellent A-Excellent
Dimethyl Aniline D-Severe Effect A-Excellent
Dimethyl Formamide A-Excellent A-Excellent
Diphenyl D-Severe Effect A-Excellent
Diphenyl Oxide D-Severe Effect A-Excellent
Epsom Salts (Magnesium Sulfate) A-Excellent A-Excellent
Ethane D-Severe Effect A-Excellent
Ethanol A-Excellent A-Excellent
Ethanolamine D-Severe Effect A-Excellent
Ether D-Severe Effect A-Excellent
Ethyl Acetate A-Excellent A-Excellent
Ethyl Benzoate B-Good A-Excellent
Ethyl Chloride D-Severe Effect A-Excellent
Ethyl Ether D-Severe Effect A-Excellent
Ethyl Sulfate no data A-Excellent
Ethylene Bromide D-Severe Effect A-Excellent
Ethylene Chloride C-Fair A-Excellent
Ethylene Chlorohydrin D-Severe Effect A-Excellent
Ethylene Diamine no data A-Excellent
Ethylene Dichloride D-Severe Effect A-Excellent
Ethylene Glycol A-Excellent A-Excellent
Ethylene Oxide D-Severe Effect A-Excellent
Fatty Acids A-Excellent A-Excellent
Ferric Chloride A-Excellent A-Excellent
Ferric Nitrate A-Excellent A-Excellent
Ferric Sulfate A-Excellent A-Excellent
Ferrous Chloride A-Excellent A-Excellent
Ferrous Sulfate A-Excellent A-Excellent
Fluoboric Acid A-Excellent A-Excellent
Fluorine D-Severe Effect D-Severe Effect
Fluosilicic Acid A-Excellent A-Excellent
Formaldehyde 100% C-Fair A-Excellent
Formaldehyde 40% A-Excellent A-Excellent
Formic Acid A-Excellent A-Excellent
Freon 113 D-Severe Effect A-Excellent
Freon 12 A-Excellent A-Excellent
Freon 22 B-Good A-Excellent
Freon TF D-Severe Effect A-Excellent
Freon? 11 A-Excellent A-Excellent
Fruit Juice B-Good A-Excellent
Fuel Oils A-Excellent B-Good
Furan Resin D-Severe Effect A-Excellent
Furfural D-Severe Effect A-Excellent
Gallic Acid A-Excellent B-Good
Gasoline (high-aromatic) A-Excellent B-Good
Gasoline, leaded, ref. B-Good A-Excellent
Gasoline, unleaded C-Fair A-Excellent
Gelatin A-Excellent A-Excellent
Glucose A-Excellent A-Excellent
Glue, P.V.A. no data A-Excellent
Glycerin A-Excellent A-Excellent
Glycolic Acid A-Excellent A-Excellent
Gold Monocyanide no data D-Severe Effect
Grape Juice no data A-Excellent
Grease no data A-Excellent
Heptane C-Fair A-Excellent
Hexane B-Good A-Excellent
Honey A-Excellent A-Excellent
Hydraulic Oil (Petro) D-Severe Effect A-Excellent
Hydraulic Oil (Synthetic) D-Severe Effect A-Excellent
Hydrazine C-Fair A-Excellent
Hydrobromic Acid 100% C-Fair A-Excellent
Hydrobromic Acid 20% A-Excellent no data
Hydrochloric Acid 100% B-Good A-Excellent
Hydrochloric Acid 20% B-Good A-Excellent
Hydrochloric Acid 37% C-Fair A-Excellent
Hydrochloric Acid, Dry Gas B-Good A-Excellent
Hydrocyanic Acid A-Excellent A-Excellent
Hydrocyanic Acid (Gas 10%) A-Excellent A-Excellent
Hydrofluoric Acid 100% C-Fair A-Excellent
Hydrofluoric Acid 20% A-Excellent A-Excellent
Hydrofluoric Acid 50% A-Excellent A-Excellent
Hydrofluoric Acid 75% C-Fair A-Excellent
Hydrofluosilicic Acid 100% A-Excellent A-Excellent
Hydrofluosilicic Acid 20% A-Excellent A-Excellent
Hydrogen Gas A-Excellent A-Excellent
Hydrogen Peroxide 10% A-Excellent A-Excellent
Hydrogen Peroxide 100% B-Good A-Excellent
Hydrogen Peroxide 30% B-Good A-Excellent
Hydrogen Peroxide 50% B-Good A-Excellent
Hydrogen Sulfide (aqua) A-Excellent A-Excellent
Hydrogen Sulfide (dry) A-Excellent A-Excellent
Hydroquinone A-Excellent A-Excellent
Hydroxyacetic Acid 70% no data A-Excellent
Ink no data A-Excellent
Iodine C-Fair A-Excellent
Iodoform no data C-Fair
Isooctane A-Excellent A-Excellent
Isopropyl Acetate B-Good A-Excellent
Isopropyl Ether B-Good A-Excellent
Isotane D-Severe Effect no data
Jet Fuel (JP3, JP4, JP5) A-Excellent A-Excellent
Kerosene B-Good A-Excellent
Ketones C-Fair A-Excellent
Lacquer Thinners D-Severe Effect A-Excellent
Lacquers D-Severe Effect A-Excellent
Lactic Acid B-Good A-Excellent
Lard B-Good A-Excellent
Latex A-Excellent A-Excellent
Lead Acetate A-Excellent A-Excellent
Lead Nitrate A-Excellent A-Excellent
Lead Sulfamate A-Excellent B-Good
Ligroin A-Excellent A-Excellent
Lime no data A-Excellent
Linoleic Acid B-Good A-Excellent
Lithium Chloride A-Excellent A-Excellent
Lithium Hydroxide no data A-Excellent
Lubricants A-Excellent A-Excellent
Lye: Ca(OH)2 Calcium Hydroxide A-Excellent A-Excellent
Lye: KOH Potassium Hydroxide A-Excellent A-Excellent
Lye: NaOH Sodium Hydroxide A-Excellent A-Excellent
Magnesium Bisulfate A-Excellent A-Excellent
Magnesium Carbonate A-Excellent A-Excellent
Magnesium Chloride A-Excellent A-Excellent
Magnesium Hydroxide A-Excellent A-Excellent
Magnesium Nitrate A-Excellent A-Excellent
Magnesium Oxide no data A-Excellent
Magnesium Sulfate (Epsom Salts) A-Excellent A-Excellent
Maleic Acid A-Excellent A-Excellent
Maleic Anhydride D-Severe Effect A-Excellent
Malic Acid A-Excellent A-Excellent
Manganese Sulfate no data A-Excellent
Mayonnaise no data A-Excellent
Melamine A-Excellent A-Excellent
Mercuric Chloride (dilute) B-Good A-Excellent
Mercuric Cyanide B-Good B-Good
Mercurous Nitrate A-Excellent A-Excellent
Mercury B-Good A-Excellent
Methane A-Excellent A-Excellent
Methanol (Methyl Alcohol) A-Excellent A-Excellent
Methyl Acetate D-Severe Effect A-Excellent
Methyl Acrylate D-Severe Effect A-Excellent
Methyl Alcohol 10% A-Excellent A-Excellent
Methyl Bromide C-Fair A-Excellent
Methyl Butyl Ketone D-Severe Effect no data
Methyl Cellosolve B-Good A-Excellent
Methyl Chloride D-Severe Effect A-Excellent
Methyl Dichloride D-Severe Effect no data
Methyl Ethyl Ketone B-Good A-Excellent
Methyl Isobutyl Ketone A-Excellent A-Excellent
Methyl Isopropyl Ketone no data A-Excellent
Methyl Methacrylate D-Severe Effect no data
Methylamine A-Excellent A-Excellent
Methylene Chloride B-Good A-Excellent
Milk B-Good A-Excellent
Mineral Spirits B-Good A-Excellent
Molasses B-Good A-Excellent
Monochloroacetic acid no data A-Excellent
Monoethanolamine B-Good A-Excellent
Morpholine B-Good A-Excellent
Motor oil A-Excellent A-Excellent
Mustard A-Excellent A-Excellent
Naphtha B-Good B-Good
Naphthalene B-Good A-Excellent
Natural Gas A-Excellent A-Excellent
Nickel Chloride A-Excellent A-Excellent
Nickel Nitrate A-Excellent A-Excellent
Nickel Sulfate A-Excellent A-Excellent
Nitrating Acid (<15% HNO3) C-Fair A-Excellent
Nitrating Acid (>15% H2SO4) C-Fair A-Excellent
Nitrating Acid (?1% Acid) C-Fair A-Excellent
Nitrating Acid (?15% H2SO4) C-Fair A-Excellent
Nitric Acid (20%) A-Excellent A-Excellent
Nitric Acid (50%) B-Good A-Excellent
Nitric Acid (5-10%) A-Excellent A-Excellent
Nitric Acid (Concentrated) D-Severe Effect A-Excellent
Nitrobenzene B-Good A-Excellent
Nitrogen Fertilizer no data A-Excellent
Nitromethane B-Good A-Excellent
Nitrous Acid A-Excellent A-Excellent
Nitrous Oxide D-Severe Effect A-Excellent
Oils:Aniline A-Excellent A-Excellent
Oils:Bone A-Excellent A-Excellent
Oils:Castor A-Excellent A-Excellent
Oils:Cinnamon D-Severe Effect A-Excellent
Oils:Citric A-Excellent A-Excellent
Oils:Clove no data A-Excellent
Oils:Coconut A-Excellent A-Excellent
Oils:Cod Liver A-Excellent A-Excellent
Oils:Corn A-Excellent A-Excellent
Oils:Cottonseed A-Excellent A-Excellent
Oils:Creosote C-Fair A-Excellent
Oils:Diesel Fuel (20, 30, 40, 50) A-Excellent A-Excellent
Oils:Fuel (1, 2, 3, 5A, 5B, 6) B-Good A-Excellent
Oils:Ginger no data A-Excellent
Oils:Hydraulic Oil (Petro) D-Severe Effect A-Excellent
Oils:Hydraulic Oil (Synthetic) D-Severe Effect A-Excellent
Oils:Lemon no data A-Excellent
Oils:Linseed A-Excellent A-Excellent
Oils:Mineral A-Excellent A-Excellent
Oils:Olive A-Excellent A-Excellent
Oils:Orange A-Excellent no data
Oils:Palm no data A-Excellent
Oils:Peanut D-Severe Effect A-Excellent
Oils:Peppermint no data A-Excellent
Oils:Pine B-Good A-Excellent
Oils:Rapeseed D-Severe Effect A-Excellent
Oils:Rosin A-Excellent A-Excellent
Oils:Sesame Seed A-Excellent A-Excellent
Oils:Silicone A-Excellent A-Excellent
Oils:Soybean A-Excellent A-Excellent
Oils:Sperm (whale) no data A-Excellent
Oils:Transformer B-Good A-Excellent
Oils:Turbine B-Good A-Excellent
Oleic Acid B-Good A-Excellent
Oleum 100% D-Severe Effect A-Excellent
Oleum 25% D-Severe Effect A-Excellent
Oxalic Acid (cold) A-Excellent A-Excellent
Ozone B-Good A-Excellent
Palmitic Acid B-Good A-Excellent
Paraffin A-Excellent A-Excellent
Pentane D-Severe Effect A-Excellent
Perchloric Acid C-Fair A-Excellent
Perchloroethylene D-Severe Effect A-Excellent
Petrolatum D-Severe Effect C-Fair
Petroleum B-Good A-Excellent
Phenol (10%) B-Good A-Excellent
Phenol (Carbolic Acid) B-Good A-Excellent
Phosphoric Acid (>40%) A-Excellent A-Excellent
Phosphoric Acid (crude) B-Good A-Excellent
Phosphoric Acid (molten) D-Severe Effect no data
Phosphoric Acid (?40%) A-Excellent A-Excellent
Phosphoric Acid Anhydride A-Excellent A-Excellent
Phosphorus A-Excellent A-Excellent
Photographic Developer A-Excellent A-Excellent
Photographic Solutions A-Excellent A-Excellent
Phthalic Acid A-Excellent A-Excellent
Phthalic Anhydride D-Severe Effect A-Excellent
Picric Acid B-Good A-Excellent
Plating Solutions, Antimony Plating 130?F A-Excellent A-Excellent
Plating Solutions, Arsenic Plating 110?F A-Excellent A-Excellent
Plating Solutions, Brass Plating: High-Speed Brass Bath 110?F A-Excellent A-Excellent
Plating Solutions, Brass Plating: Regular Brass Bath 100?F A-Excellent A-Excellent
Plating Solutions, Bronze Plating: Cu-Cd Bronze Bath R.T. A-Excellent A-Excellent
Plating Solutions, Bronze Plating: Cu-Sn Bronze Bath 160?F A-Excellent A-Excellent
Plating Solutions, Bronze Plating: Cu-Zn Bronze Bath 100?F A-Excellent A-Excellent
Plating Solutions, Cadmium Plating: Cyanide Bath 90?F A-Excellent A-Excellent
Plating Solutions, Cadmium Plating: Fluoborate Bath 100?F A-Excellent A-Excellent
Plating Solutions, Chromium Plating: Barrel Chrome Bath 95?F A-Excellent A-Excellent
Plating Solutions, Chromium Plating: Black Chrome Bath 115?F A-Excellent A-Excellent
Plating Solutions, Chromium Plating: Chromic-Sulfuric Bath 130?F A-Excellent A-Excellent
Plating Solutions, Chromium Plating: Fluoride Bath 130?F A-Excellent A-Excellent
Plating Solutions, Chromium Plating: Fluosilicate Bath 95?F D-Severe Effect A-Excellent
Plating Solutions, Copper Plating (Acid): Copper Fluoborate Bath 120?F A-Excellent A-Excellent
Plating Solutions, Copper Plating (Acid): Copper Sulfate Bath R.T. A-Excellent A-Excellent
Plating Solutions, Copper Plating (Cyanide): Copper Strike Bath 120?F A-Excellent A-Excellent
Plating Solutions, Copper Plating (Cyanide): High-Speed Bath 180?F A-Excellent A-Excellent
Plating Solutions, Copper Plating (Cyanide): Rochelle Salt Bath 150?F A-Excellent A-Excellent
Plating Solutions, Copper Plating (Misc): Copper (Electroless) A-Excellent A-Excellent
Plating Solutions, Copper Plating (Misc): Copper Pyrophosphate A-Excellent A-Excellent
Plating Solutions, Gold Plating: Acid 75?F A-Excellent A-Excellent
Plating Solutions, Gold Plating: Cyanide 150?F A-Excellent A-Excellent
Plating Solutions, Gold Plating: Neutral 75?F A-Excellent A-Excellent
Plating Solutions, Indium Sulfamate Plating R.T. A-Excellent A-Excellent
Plating Solutions, Iron Plating: Ferrous Am Sulfate Bath 150?F A-Excellent A-Excellent
Plating Solutions, Iron Plating: Ferrous Chloride Bath 190?F C-Fair A-Excellent
Plating Solutions, Iron Plating: Ferrous Sulfate Bath 150?F A-Excellent A-Excellent
Plating Solutions, Iron Plating: Fluoborate Bath 145?F A-Excellent A-Excellent
Plating Solutions, Iron Plating: Sulfamate 140?F A-Excellent A-Excellent
Plating Solutions, Iron Plating: Sulfate-Chloride Bath 160?F A-Excellent A-Excellent
Plating Solutions, Lead Fluoborate Plating A-Excellent A-Excellent
Plating Solutions, Nickel Plating: Electroless 200?F D-Severe Effect A-Excellent
Plating Solutions, Nickel Plating: Fluoborate 100-170?F A-Excellent A-Excellent
Plating Solutions, Nickel Plating: High-Chloride 130-160?F A-Excellent A-Excellent
Plating Solutions, Nickel Plating: Sulfamate 100-140?F A-Excellent A-Excellent
Plating Solutions, Nickel Plating: Watts Type 115-160?F A-Excellent A-Excellent
Plating Solutions, Rhodium Plating 120?F A-Excellent A-Excellent
Plating Solutions, Silver Plating 80-120?F A-Excellent A-Excellent
Plating Solutions, Tin-Fluoborate Plating 100?F A-Excellent A-Excellent
Plating Solutions, Tin-Lead Plating 100?F A-Excellent A-Excellent
Plating Solutions, Zinc Plating: Acid Chloride 140?F A-Excellent A-Excellent
Plating Solutions, Zinc Plating: Acid Fluoborate Bath R.T. A-Excellent A-Excellent
Plating Solutions, Zinc Plating: Acid Sulfate Bath 150?F A-Excellent A-Excellent
Plating Solutions, Zinc Plating: Alkaline Cyanide Bath R.T. A-Excellent A-Excellent
Potash (Potassium Carbonate) A-Excellent no data
Potassium Bicarbonate A-Excellent A-Excellent
Potassium Bromide A-Excellent A-Excellent
Potassium Chlorate A-Excellent A-Excellent
Potassium Chloride A-Excellent A-Excellent
Potassium Chromate A-Excellent A-Excellent
Potassium Cyanide Solutions A-Excellent A-Excellent
Potassium Dichromate A-Excellent A-Excellent
Potassium Ferricyanide A-Excellent A-Excellent
Potassium Ferrocyanide A-Excellent A-Excellent
Potassium Hydroxide (Caustic Potash) A-Excellent A-Excellent
Potassium Hypochlorite no data A-Excellent
Potassium Iodide A-Excellent A-Excellent
Potassium Nitrate A-Excellent A-Excellent
Potassium Oxalate no data A-Excellent
Potassium Permanganate A-Excellent A-Excellent
Potassium Sulfate A-Excellent A-Excellent
Potassium Sulfide A-Excellent A-Excellent
Propane (liquefied) A-Excellent A-Excellent
Propylene no data A-Excellent
Propylene Glycol A-Excellent A-Excellent
Pyridine A-Excellent A-Excellent
Pyrogallic Acid A-Excellent A-Excellent
Resorcinal A-Excellent A-Excellent
Rosins A-Excellent A-Excellent
Rum A-Excellent no data
Rust Inhibitors A-Excellent no data
Salad Dressings A-Excellent no data
Salicylic Acid A-Excellent A-Excellent
Salt Brine (NaCl saturated) A-Excellent A-Excellent
Sea Water A-Excellent A-Excellent
Shellac (Bleached) A-Excellent A-Excellent
Shellac (Orange) A-Excellent A-Excellent
Silicone A-Excellent A-Excellent
Silver Bromide no data A-Excellent
Silver Nitrate A-Excellent A-Excellent
Soap Solutions A-Excellent A-Excellent
Soda Ash (see Sodium Carbonate) A-Excellent A-Excellent
Sodium Acetate A-Excellent A-Excellent
Sodium Aluminate no data A-Excellent
Sodium Benzoate A-Excellent A-Excellent
Sodium Bicarbonate A-Excellent A-Excellent
Sodium Bisulfate A-Excellent A-Excellent
Sodium Bisulfite A-Excellent A-Excellent
Sodium Borate (Borax) A-Excellent A-Excellent
Sodium Bromide no data A-Excellent
Sodium Carbonate A-Excellent A-Excellent
Sodium Chlorate A-Excellent A-Excellent
Sodium Chloride A-Excellent A-Excellent
Sodium Chromate no data A-Excellent
Sodium Cyanide A-Excellent A-Excellent
Sodium Ferrocyanide A-Excellent A-Excellent
Sodium Fluoride A-Excellent A-Excellent
Sodium Hydrosulfite no data A-Excellent
Sodium Hydroxide (20%) A-Excellent A-Excellent
Sodium Hydroxide (50%) A-Excellent A-Excellent
Sodium Hydroxide (80%) A-Excellent A-Excellent
Sodium Hypochlorite (<20%) A-Excellent A-Excellent
Sodium Hypochlorite (100%) B-Good A-Excellent
Sodium Hyposulfate no data A-Excellent
Sodium Metaphosphate A-Excellent A-Excellent
Sodium Metasilicate A-Excellent A-Excellent
Sodium Nitrate A-Excellent A-Excellent
Sodium Perborate A-Excellent A-Excellent
Sodium Peroxide B-Good A-Excellent
Sodium Polyphosphate A-Excellent A-Excellent
Sodium Silicate A-Excellent A-Excellent
Sodium Sulfate A-Excellent A-Excellent
Sodium Sulfide A-Excellent A-Excellent
Sodium Sulfite A-Excellent A-Excellent
Sodium Tetraborate no data A-Excellent
Sodium Thiosulfate (hypo) A-Excellent A-Excellent
Stannic Chloride A-Excellent A-Excellent
Stannous Chloride A-Excellent A-Excellent
Starch A-Excellent A-Excellent
Stearic Acid A-Excellent A-Excellent
Stoddard Solvent C-Fair A-Excellent
Styrene no data A-Excellent
Sugar (Liquids) A-Excellent A-Excellent
Sulfate (Liquors) A-Excellent A-Excellent
Sulfur Chloride C-Fair A-Excellent
Sulfur Dioxide A-Excellent A-Excellent
Sulfur Dioxide (dry) A-Excellent A-Excellent
Sulfur Trioxide C-Fair A-Excellent
Sulfur Trioxide (dry) D-Severe Effect A-Excellent
Sulfuric Acid (<10%) A-Excellent A-Excellent
Sulfuric Acid (10-75%) A-Excellent A-Excellent
Sulfuric Acid (75-100%) C-Fair A-Excellent
Sulfuric Acid (cold concentrated) A-Excellent A-Excellent
Sulfuric Acid (hot concentrated) D-Severe Effect A-Excellent
Sulfurous Acid A-Excellent A-Excellent
Sulfuryl Chloride no data A-Excellent
Tallow A-Excellent A-Excellent
Tannic Acid A-Excellent A-Excellent
Tanning Liquors A-Excellent A-Excellent
Tartaric Acid A-Excellent A-Excellent
Tetrachloroethane C-Fair A-Excellent
Tetrachloroethylene D-Severe Effect A-Excellent
Tetrahydrofuran C-Fair A-Excellent
Tin Salts A-Excellent A-Excellent
Toluene (Toluol) C-Fair A-Excellent
Tomato Juice A-Excellent A-Excellent
Trichloroacetic Acid A-Excellent A-Excellent
Trichloroethane C-Fair A-Excellent
Trichloroethylene C-Fair A-Excellent
Trichloropropane no data A-Excellent
Tricresylphosphate A-Excellent A-Excellent
Triethylamine D-Severe Effect A-Excellent
Trisodium Phosphate A-Excellent A-Excellent
Turpentine D-Severe Effect A-Excellent
Urea A-Excellent A-Excellent
Uric Acid no data A-Excellent
Urine A-Excellent A-Excellent
Varnish A-Excellent A-Excellent
Vegetable Juice no data A-Excellent
Vinegar A-Excellent A-Excellent
Vinyl Acetate B-Good A-Excellent
Vinyl Chloride no data A-Excellent
Water, Acid, Mine A-Excellent A-Excellent
Water, Deionized A-Excellent A-Excellent
Water, Distilled A-Excellent A-Excellent
Water, Fresh A-Excellent A-Excellent
Water, Salt A-Excellent A-Excellent
Whiskey & Wines A-Excellent A-Excellent
White Liquor (Pulp Mill) A-Excellent A-Excellent
White Water (Paper Mill) A-Excellent A-Excellent
Xylene B-Good A-Excellent
Zinc Chloride A-Excellent A-Excellent
Zinc Hydrosulfite no data A-Excellent
Zinc Sulfate A-Excellent A-Excellent
Diethylamine no data D-Severe Effect
A = Excellent.
B = Good -- Minor Effect, slight corrosion or discoloration.
C = Fair -- Moderate Effect, not recommended for continuous use. Softening, loss of strength, swelling may occur.
D = Severe Effect, not recommended for ANY use.
no data = Information Not Available.



WARNING

The information in this chart has been supplied to SPS-Europe by other reputable sources and is to be used ONLY as a guide in selecting equipment for appropriate chemical compatibility. Before permanent installation, test the equipment with the chemicals and under the specific conditions of your application.

Ratings of chemical behavior listed in this chart apply at a 48-hr exposure period.

SPS-Europe has no knowledge of possible effects beyond this period. SPS-Europe does not warrant (neither express nor implied) that the information in this chart is accurate or complete or that any material is suitable for any purpose.

DANGER

Variations in chemical behavior during handling due to factors such as temperature, pressure, and concentrations can cause equipment to fail, even though it passed an initial test.

SERIOUS INJURY MAY RESULT.

Use suitable guards and/or personal protections when handling chemicals.

PP and PTFE material description
PP and PTFE material description

www.spincoating.com is powered by www.sps-europe.com
